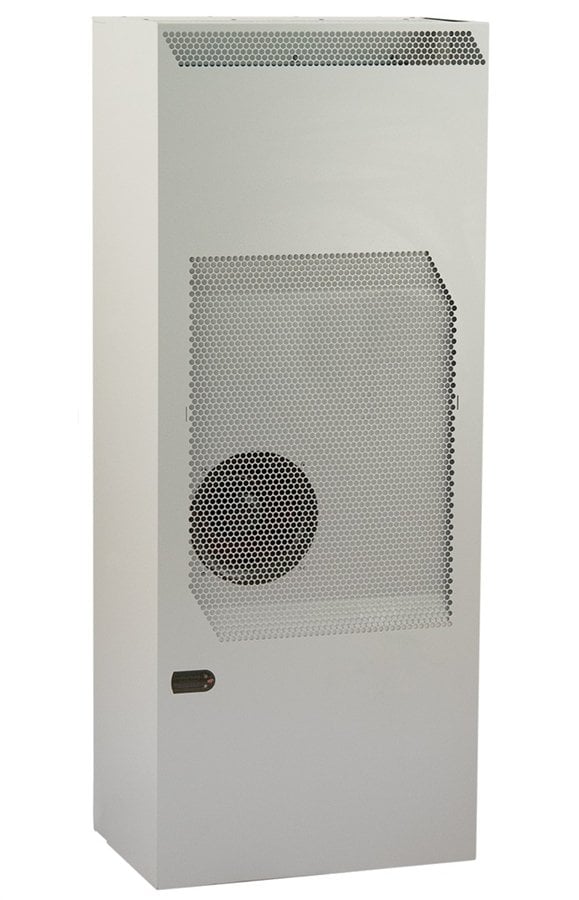

Seifert 43302001 400/460V 10240 BTU Control Cabinet Air Conditioner

The Seifert 43302001 KG 4330-400V ComPact control cabinet air conditioner has a rated voltage of 400-460V. It has an L35L35 cooling capacity of 10240 BTU/hr. The L35L35 power consumption is 1.34 kW at 400 V and 1.7 kW at 460 V, with a max. power consumption of 1.66 kW at 400 V and 2.10 kW at 460 V. The housing is gray powder coated mild steel and the unit is externally mounted. Almost no maintenance needed Surface treated condenser High fin separation Simple operation Reliable performance Features display to indicate status Touchpad controls settings adjustments Standardized components Needs no filters Made for indoor applications Specifications Color- RAL 7035 Gray Housing Material- Powder Coated Mild Steel Cooling Capacity L35L35- 10240 Btu/hr Cooling Capacity L35L50- 8,160 Btu/hr @ 50 Hz 3~, 8,550 Btu/hr @ 60 Hz 3~ Compressor- Rotary Piston Compressor Refrigerant- R134a / 1430 Refrigerant Charge- 755 g / 26.6 oz High / Low Pressure- 24 / 6 bar, 348 / 88 psig Operating Temperature Range- 50 F - 131 F Max. Air Volume Flow- Ambient air circuit: 441 cfm, Cabinet air circuit: 506 cfm Mounting- External Dimensions- 48.43" Height x 19.69" Width x 13.39" Depth Cut-out Dimensions- 44.48"
