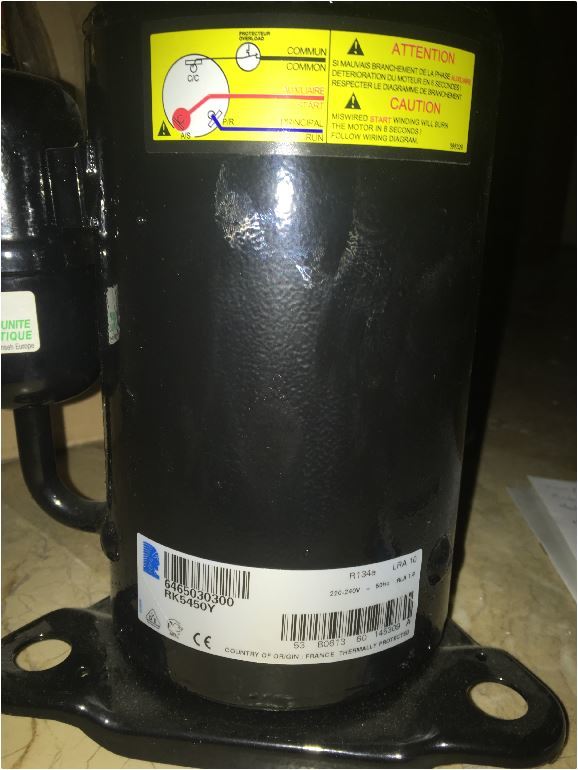

RK5450Y Kompresör RKA5450YUZ

Product Specifications Performance Refrigeration Capacity Input Power Efficiency EVAP TEMP COND TEMP AMBIENT TEMP RETURN GAS LIQUID TEMP Condition Test Voltage Btu/h kcal/h W W Btu/Wh kcal/Wh W/W EN12900 230V ~ 60HZ 4778 1204 1400 488 9.79 2.47 2.87 5°C (41°F) 50°C (122°F) 32°C (90°F) 15°C (59°F) 50°C (122°F) EN12900 230V ~ 50HZ 3771 950 1105 461 8.18 2.06 2.4 5°C (41°F) 50°C (122°F) 32°C (90°F) 15°C (59°F) 50°C (122°F) General Evaporating Temp. Range: -15°C to 15°C (5°F to 59°F) Motor Torque: Low Start Torque (LST) Compressor Cooling: Fan Mechanical Weight: 12 Weight Unit of Measure: KG Displacement (cc): 11.4 Oil Type: Polyvinylether Viscosity (cSt): 68 Oil Charge (cc): 414 Electrical Voltage Range (50 Hz): 207-253 Voltage Range (60 Hz): 207-253 Locked Rotor Amps (LRA): 25 Rated Load Amps (RLA 50 Hz): 2.6 Rated Load Amps (RLA 60 Hz): 3.8 Max. Continuous Current (MCC in Amps): 5.6 Motor Resistance (Ohm) - Main: 2.5 Motor Resistance (Ohm) - Start: 6.7 Motor Type: PSC Overload Type: N/A Relay Type: N/A Agency Approval CCC Listed, CE Listed, UL Recognized
