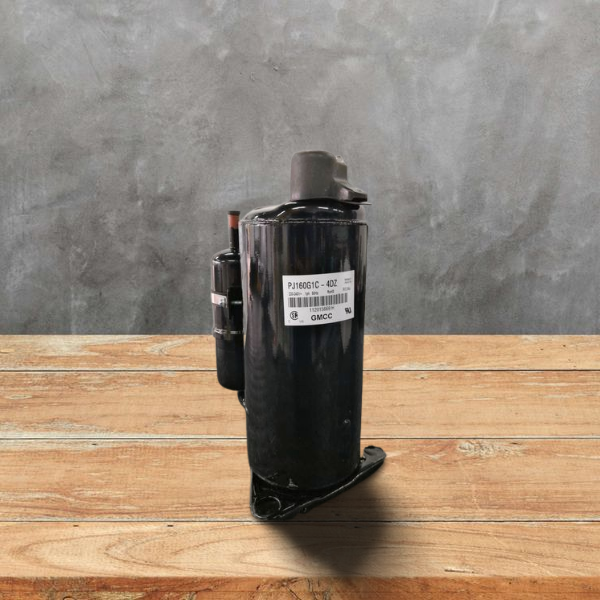

GMCC PJ160G1C-4DZ Compressor hermetic rotary

Data Sheet Power supply 220/240 V-50 Hz-1 Ph Displacement 16,0 cm3 Cooling capacity at ASHRAE HT conditions, R134a 1,90 kW Refrigerant R134a Suction pipe 3/8" Discharge pipe 3/8" Weight 12,00 kg Rated current 2,8 A LRA 18,5 A MCC 4,85 A Type of oil Ester oil VG74 Sound level ≤66 dB Application MHBP Technology Fixed speed Maximum discharge temperature 115 ºC Maximum winding temperature 125 ºC Maximum shell bottom temperature 115 ºC Resistance of coils Main:4,24 Ω/ Aux:4,95 Ω Accessories Run capacitor 25 μF/450 V (RCDC0056) Type of motor cooling Suction gas Motor type 1-Ph Induction motor (PSC) Motor protection type Internal Speed 2900 rpm
