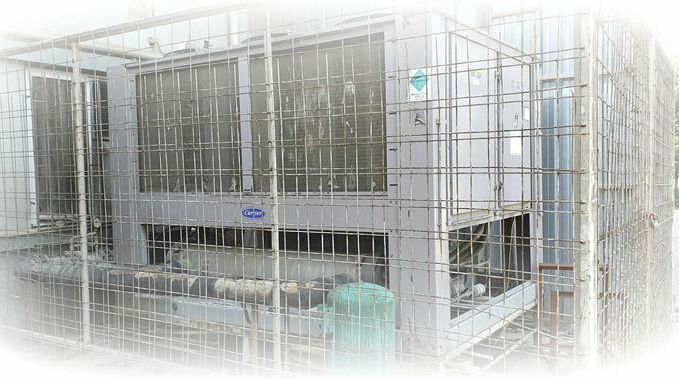

Carrier Chiller 250kW 30GTN070

General Information Manufacturer Carrier Manufacturer Part Number 30GTN070 Product Line Package SystemsProduct Name30GTN070 Marketing Information The 30GTN family of chillers feature Carrier's 06E semi-hermetic reciprocating compressors, HCFC-22, ComfortLink microprocessor controls, low sound levels in a compact size. Features Simple, easy to use, "Clear Language" controls 30% Faster start-ups with less training Multiple language display standard Optional hand-held Navigator display for faster troubleshooting Sound comparable with many screw chillers Capable of variable flow operation Wide operating range (-20° to 125° F) Carrier Comfort Network (CCN) ready Simple energy management interface to EMS/BMS systems 300 psig (2068 kPa) cooler waterside pressure rating ARI Certified Efficiencies/ASHRAE 90.1 compliant Over 35,000 worldwide installations Available with Enviro-Shield coil corrosion protection and E-Coat for superior protection from the most severe environments Specifications MODEL COOLING CAPACITY DIMENSIONS 60 Hz 50 Hz Length Width Height kW Tons kW Tons mm ft mm ft mm ft 30GTN040 126 36 123 35 2515 8.3 2261 7.4 2261 7.4 30GTN045 146 42 147 42 2515 8.3 2261 7.4 2261 7.4 30G
